- Model Number PVC-1-6
- Waveheight 30mm
- Pitch 219mm
- Thickness 2.8mm
- Wavedistance 160mm
- Projectsolutioncapability Others
- Width 1050mm
- Warranty 2 years
- Designstyle Contemporary

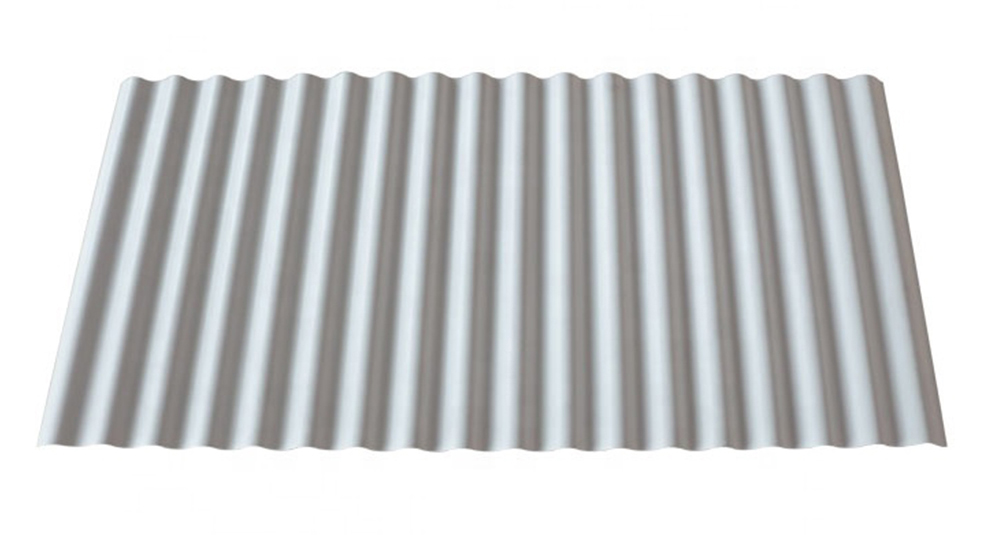

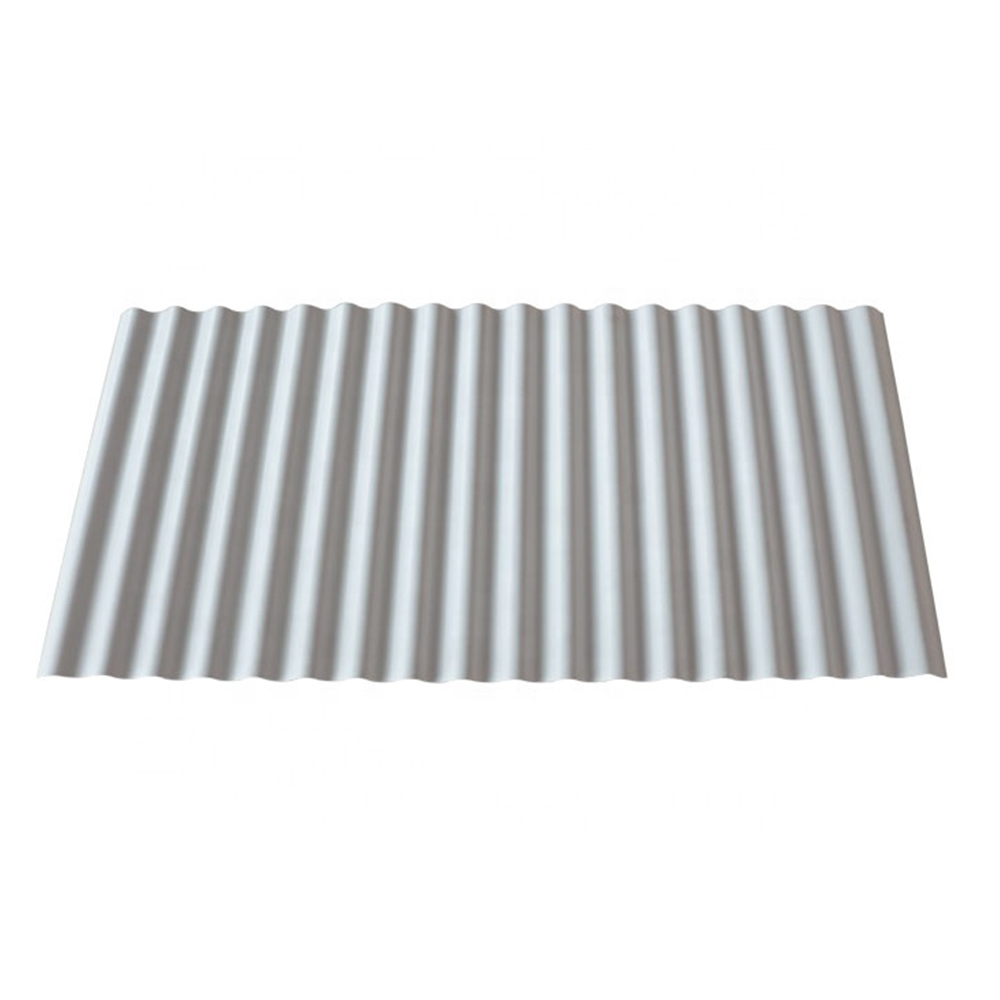

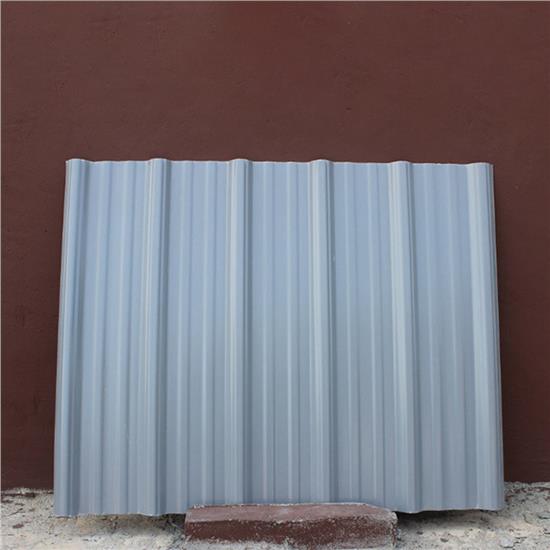

- Productname pvc roof tile
- Size Customized Size
- Type Plain Roof Tiles
- After-Saleservice Online technical support
- Length multiples of the pitch mad

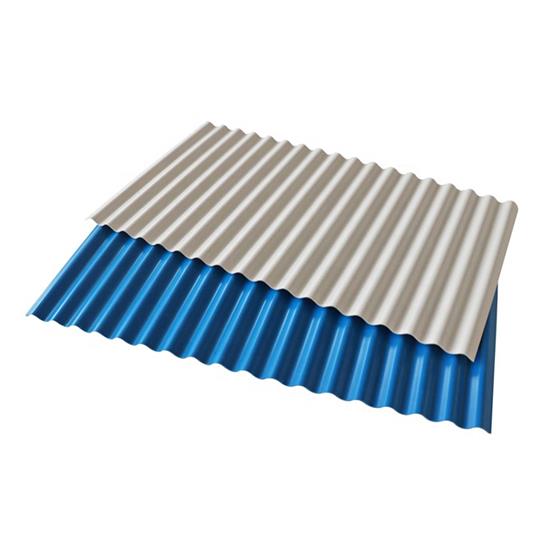

- Colors red/gary/blue/dark green/blue ash
- Application Villa, public buildings/civil buildings/villa/hotels etc.
Widely used in public buildings,civil buildings,villa,terrace houses,pavillions,recreation clubs,
hotels,holiday villages,flat-slop conversion projects,countryside transformation and new rural constructions so on.
|Type||resin roof tile|
|Material||ASA synthetic resin/strong synthetic resin/ASA composite/A+PVC/PVC/FRP lighting board/PPC|
|Length||can be coustomized|
|Color lasting||10 years no fading|
|Feature||noise/ heat insulation/ anti- Seismic/ easy to assembly/ disassembly|
1.Color Fastness:lasting color for 10 years
The surface material is made of super weather resistant ASA engineer-ing resin.It has
extraordinary durability in the natural environment.Color stability can be mainted even
under harsh conditions of ultraviolet light,moisture,heat and cold.
2.Excellent corrosion resistance
Synthetic resin tile can resist the corrosion of acid,salt and other chemical substances
for a long time.And phenomena of rust,spots etc.will not appear under various adverse urban
enviromental conditons like acid rain etc.
3.Strong impact resistance
According to the test,1kg steel ball falling freely from 3 meters high will not crack
synthetic resin tile,which has s strong bearing capacity of external impact.
4.Good load resistance
In low temperature climate,even if the roof under perennial snow,synthetic resin tile will
be not damaged or torn.The test also shows that the resin tile will not deform and fall
under the purlin distance of 880mm,and extra 60kg loated.
5.Good sound insulation
Resin tile has good sound insulation and silencing effectg.When exposed to external noised
such as raintorm and gale,it can be both sound insulated and noise absorpted.The test
results show that the average sound insulation volume is over 30dB.
Resin tile materials belongs to the refractorty materials,and te fire rating meets
international CB 8624-2012 B1 level.
Synthetic resin tile is easy to install,and tile installation is more efficient and cost-
The surface of the resin tile is smooth and compact,which does not absorb wate4r,dust and
will be more clean and bright after rain wash.
Correct Installation methods and attention:
1.Correct placement of tile
a,overlapping (for roof length≤15m)
b,Interleaving (for roof length≥15m)
2.Correct use of special nail
a,The special nail must be nailed in the middle of the tile bone to be waterproof.
b,Fixation interval of special nails is 50cm~100cm,4pcs/m2 is better.
c,Special nails must be made from the lower end of the tile to the roof top to be more
beautiful,airtight and neat.
3.Install the seal ridge tile to seal off eaves cover
a,Separate the sealing strip in half, and cover the ridge tile according to tile shape on
the roof and fix with special nail.
b,Seal the joint of the lateral tile with cement,cover the ridge tile directly and end
bottom of ridge by smalls tiles.
c,To install and nail verge cover directly on the lower end of tile or roof eaves.
d,Ridge tile joints should be clipped with scissors to fit the interface,overlapped and
sealed with glass glue.
4.Waterproof treatment for protruding part
First,make a v-type material as water connecting,which can be different materials and
specifcations accordingly,fix it at the bottom and install color steel tile on it.
5.The connection and installation of the inclined plane
It refers to the construction of water connection at the bottom of two roofing tiles after
cutting off by angle and length.First,water connection materials(i.e.,gutter)are installed
under the tiles,and then finish with waterproof adhesive or cement.
1.Wear necessary safety equipments,such as gloves,hard hats,safety belts,etc.
2.Installation workers must be certified professionals.
3.The skeleton must be firmly installed.
4.Walk on the tile,try to step on the middle part of the tile not the edge when
5.installation should be cautious in bad weather.
